Wire Myograph

Application	For Cardiac Muscles
Type	Wire

Add to wishlist

Compare

SKU: 8b8094a9e2c6 Category: Wire Myograph Tag: For Cardiac Muscles

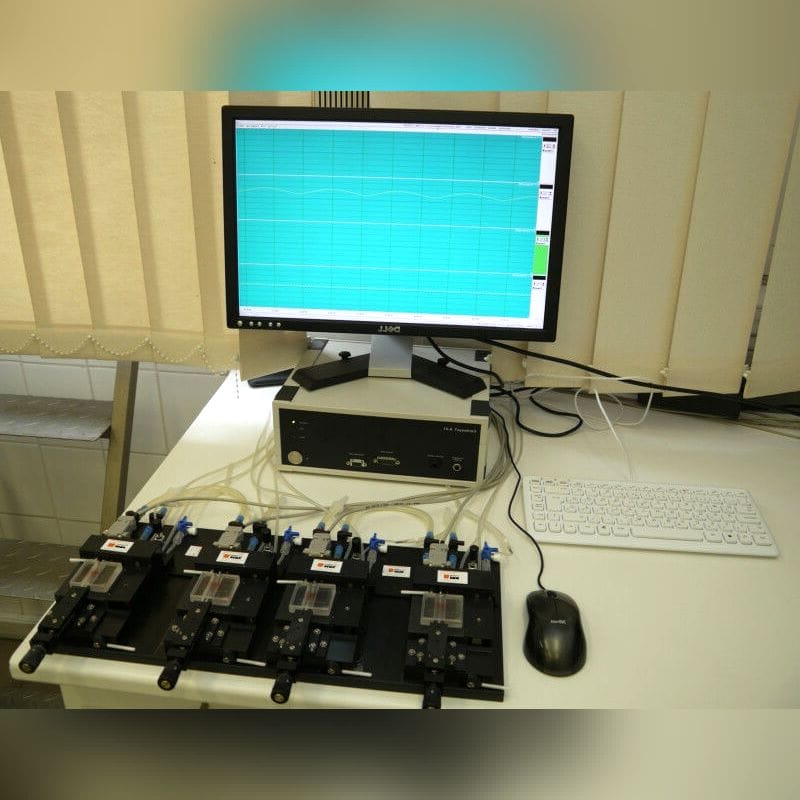

Rapid extension to 1-4 channels,

Removable organ bath (with 2, 5, 10, 20 mL capacity),

Isometric measuring sensor,

Two sets of vessel holders, depending on the diameter of the vessel being examined (Ø60 µm – Ø3 mm),

Gas controller, with a freely positioned diffuser tip,

Continuous temperature control as per request,

Covering lid against evaporation and heat loss,

Locking of the vessel holder to facilitate positioning of the organ,

The measuring unit (organ bath, manipulator, force transducer) can be unlocked and removed from the base plate,

Field-stimulation electrodes (as per request),

Temperature stabilization: circulating water bath thermostat.

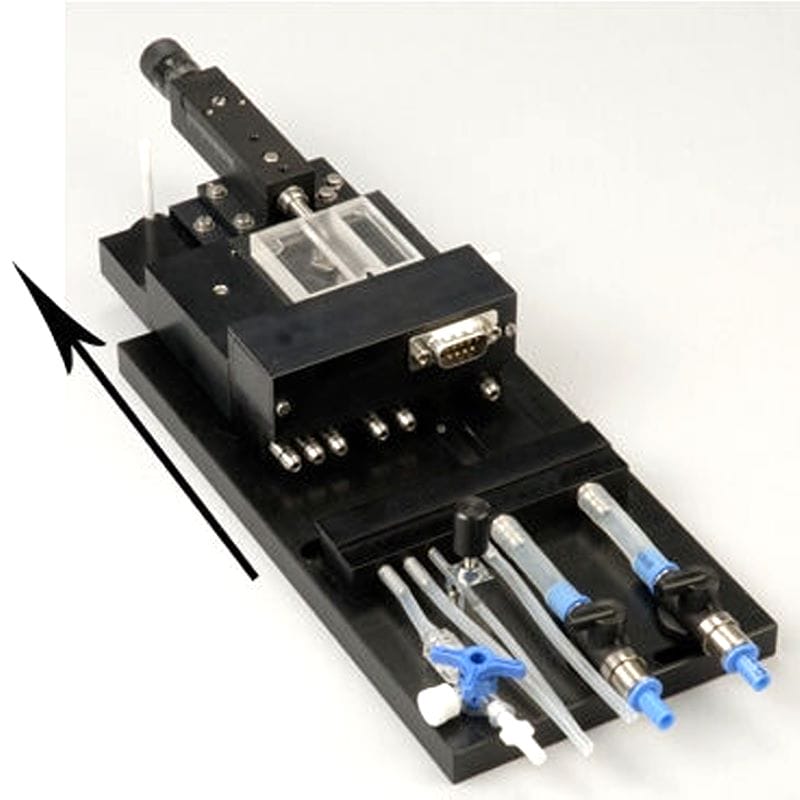

The system consists of five main units:

Organ bath (flow-through/stationary) with buffer in-and outflow stubs (gravitational or pumped flow) gas controller with freely positionable diffuser tip, and field-stimulating electrodes (as per request). Vessel holders: tungsten wires or steel prods (depending on vessel lumen); vessel holder locking for positioning of the organ,

In- and outlet stub of the thermostated circulating water bath (20 l, 15 l/min flow rate),

Precision manipulator (0.25 mm/turn),

Isometric sensor,

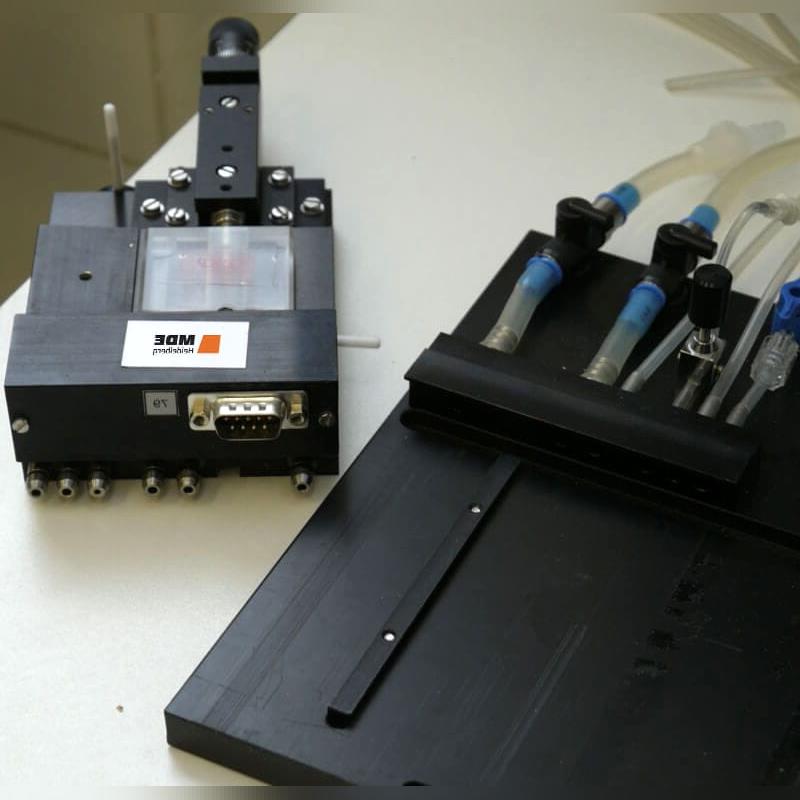

Base plate with lock/unlock lever for the measuring unit.

Organ bath, measuring unit

The organ bath is manufactured in four different volumes (2, 5, 10, 20 ml). The standard volume is 5 ml unless requested otherwise. Each volume is available for later order, and can be replaced in the measuring unit.

The tubes carrying gas and solution for maintaining optimal physiological environment are connected detachably to the measuring unit through connectors fixed in the base plate.
