Screening Tympanometer
| Type Of Patient | For Adult Audiometry, For Pediatric Audiometry |
| Type | Screening Tympanometer, Acoustic Reflex Tester |
| Technology | Digital, Wireless |
It’s beautifully made. To meet your needs.

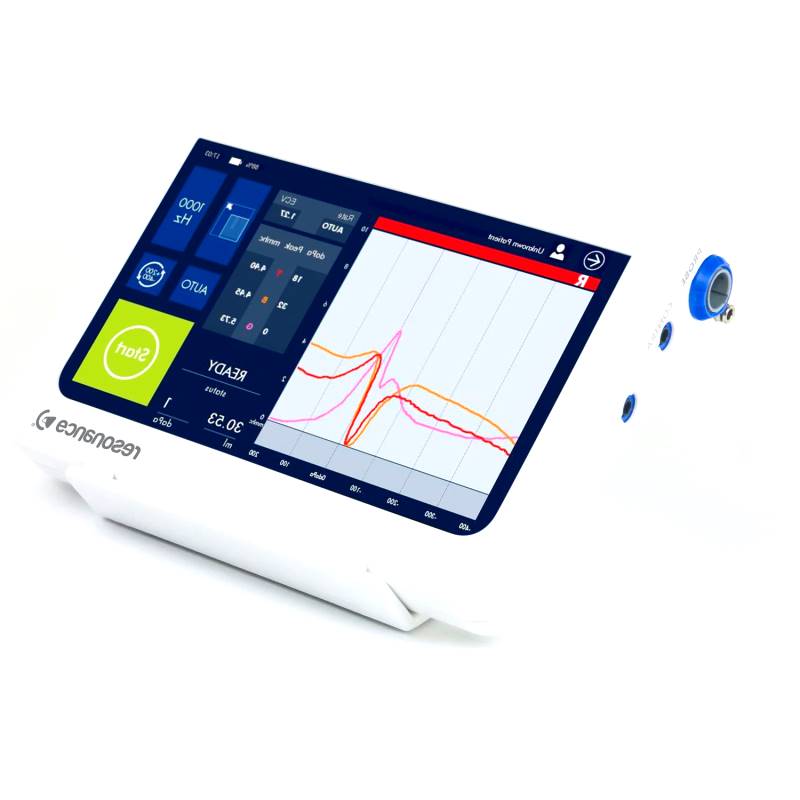

Made from high-quality materials, R16M is exquisitely designed. The R16M combines tympanometry and reflexes tests, all in a uniquely portable and wireless device with 7” touch screen display. The R16M includes a useful Quick test for fast and consecutive Tymp and Reflexes testing.
General Specifications
DIMENSIONS AND WEIGHT
• L x W x H: 180 x 135 x 23-41 mm
• Net weight: 570 g
TEST TYPES
• Tympanometry, Reexes, nr.1 Quick Test with
editable protocols, High Frequency Tympanometry,
Decay* with non acoustic monitor, ETF* for intact
membrane and patulous ET
REPORTS
• Data transfer to PC with Resonance Management
Data Suite installed
• Dedicated report template
DATA TRANSFER TO PC
• Bluetooth 2.1
USB PORT
• Nr.1 USB host type A
(pen drive connection for software upgrade)
• Nr.1 mini USB slave
WINDOWS® COMPATIBLE SOFTWARE
• Resonance MDS Management Data Suite
DISPLAY
• 7” TFT Resistive touch screen display
• 800 by 480 resolution at 133 ppi 262K colors
MAIN SYSTEM COMPONENTS
• Operative system: Microsoft® Windows® Embedded
Compact • CPU: TEGRA® 2 dual core @ 1Ghz
Tympanometry Specifications
PROBE TONE
• 226 Hz for Admittance (Y) curve tympanometry
• 1000 Hz for Admittance (Y) curve tympanometry with
added Susceptance (B) and Conductance (G) curves
• The probe is supplied in handheld mode
ADMITTANCE MEASUREMENTS
• Compliance range at 226 Hz: 0.05 up to 7 ml
• 1000 Hz: 0 to +25 mmho
AIR PRESSURE
• Range: +100/-200 or +200/-400 daPa
• Pressure accuracy: ±10 daPa or ±10%
• Sweep rate: automatic or fast (200 daPa/sec)
• Safety limitations: -750 up to +550 daPa
