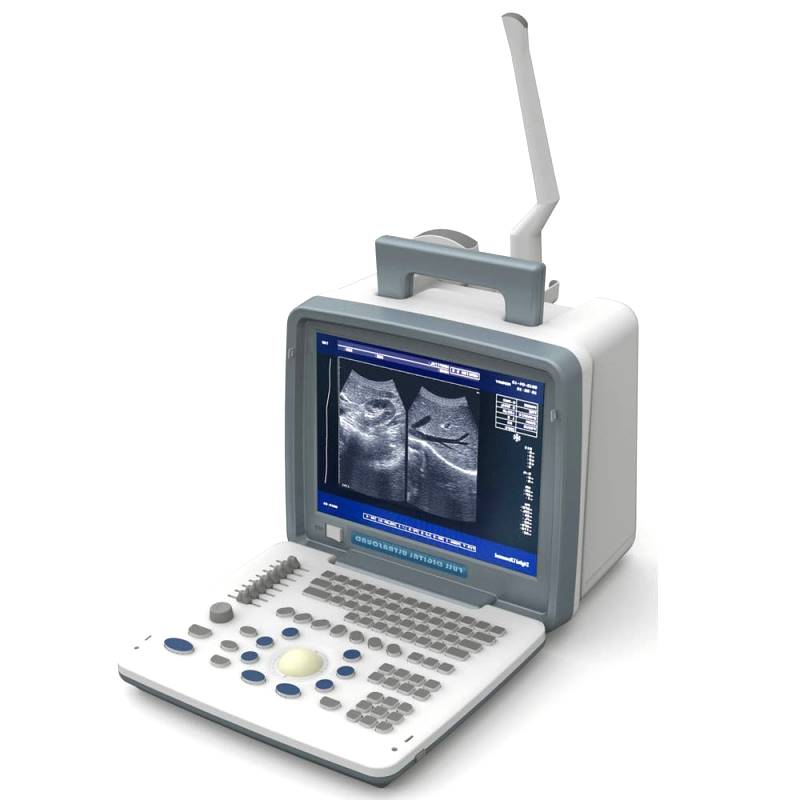

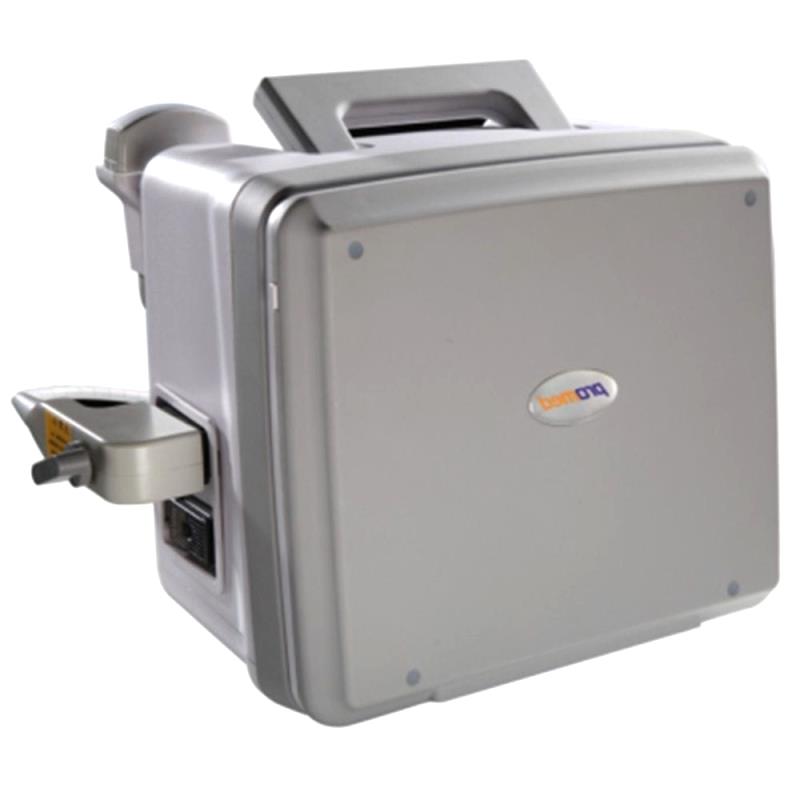

Portable Ultrasound System

Ergonomics	Portable
Options	Built-In Console
Application	For Gynecological And Obstetric Ultrasound Imaging, For Abdominal And Pelvic Ultrasound Imaging, For Urology Ultrasound Imaging, For Breast Ultrasound Imaging, For Musculoskeletal Ultrasound Imaging
Imaging Modes	B/W
Screen Size	12-Inch

Add to wishlist

Compare

SKU: e5d18808c8f0 Category: Portable Ultrasound System Tags: For Abdominal And Pelvic Ultrasound Imaging, For Gynecological And Obstetric Ultrasound Imaging, For Urology Ultrasound Imaging

Specifications

l Scan pattern: convex array, dimpling, linear array

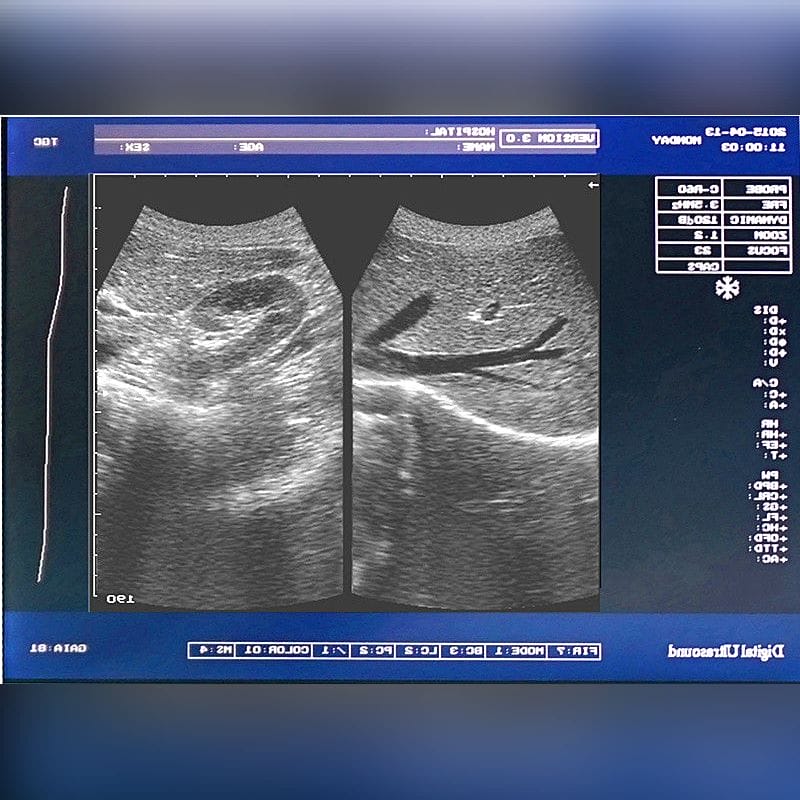

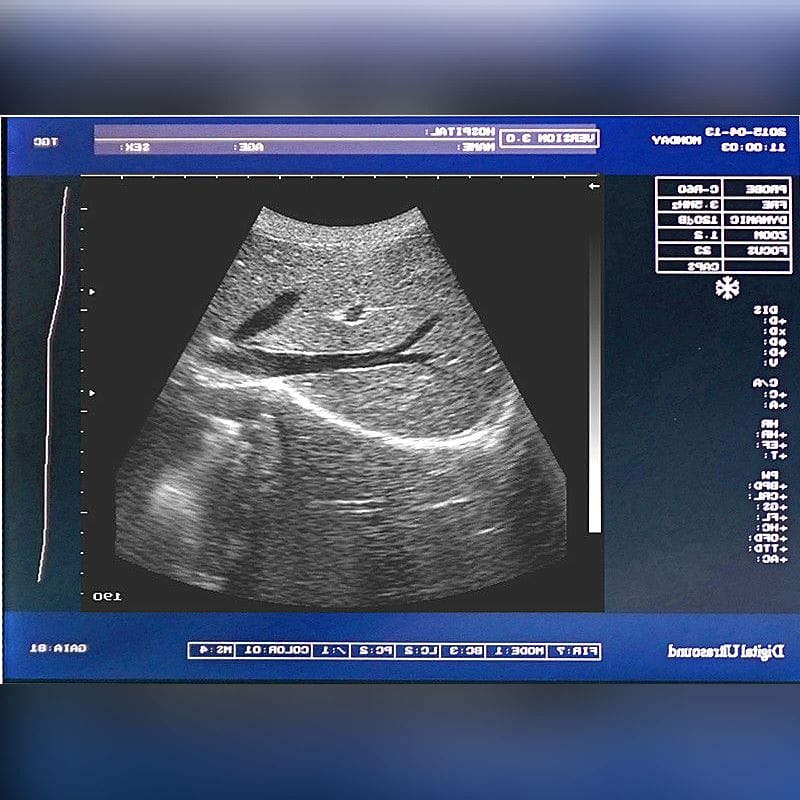

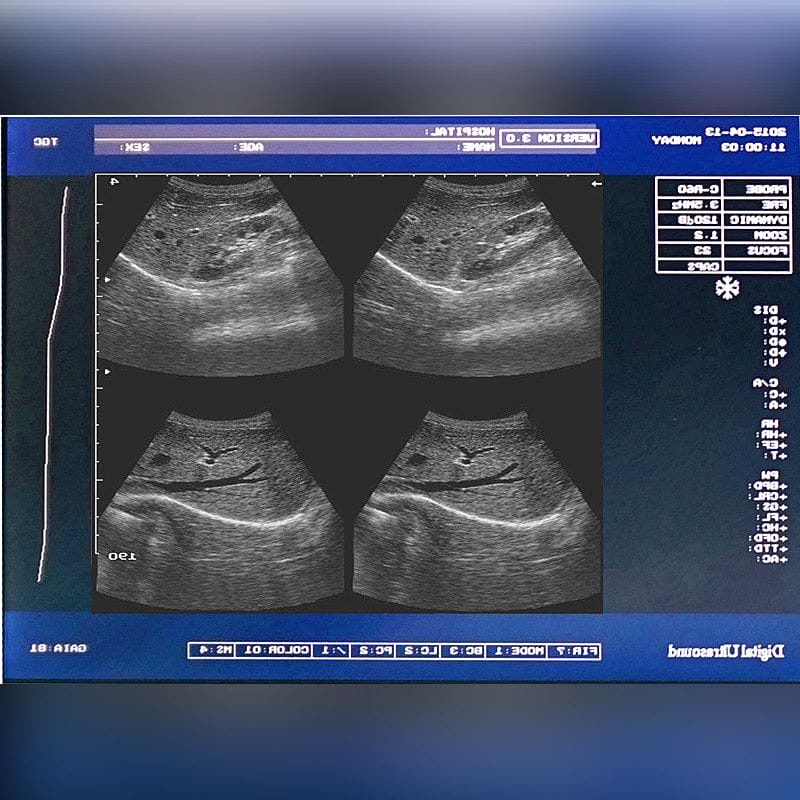

l Display mode: B, B/B, 4B, B+M, and M

l Image multiplying factor: ×0.8, ×1.0, ×1.2, × 1.5，×1 .8, ×2.0 (six modes), ×0.8, ×2.0 (display penetration depth)

l Dynamic range: 0~120dB adjustable.

l Focus position: dynamic digital electron focusing point-by-point.

l Pre-process: changeable aperture, dynamic apodization, dynamic digital filtering, etc.

l Pro-process: 8 types of γ correction, line correlation, frame correlation, point-line correlation, linear interpolation and 16 types of pseudo color processing, etc.

l Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion; frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe.

l Measuring function: Distance, perimeter, area, volume, ellipse measurement, heart rate, gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC), expected date of confinement and fetus weight, etc.

l Annotation function: hospital name, patient’s name, gender and age: 64 body marks (with probe), full-screen character annotation, real-time clock display;

l Puncture guide: The puncture guide line can be displayed under B mode.

l Gain control: 8 segments TGC and overall gain can be adjusted respectively.

l Image polarity: left and right flip, black and white flip, up and down flip.

l Capacity cine loop: real time display 256 consecutive images which are memorized successively

l Image playback: series playback or check one by one

l Permanent storage: 128 images

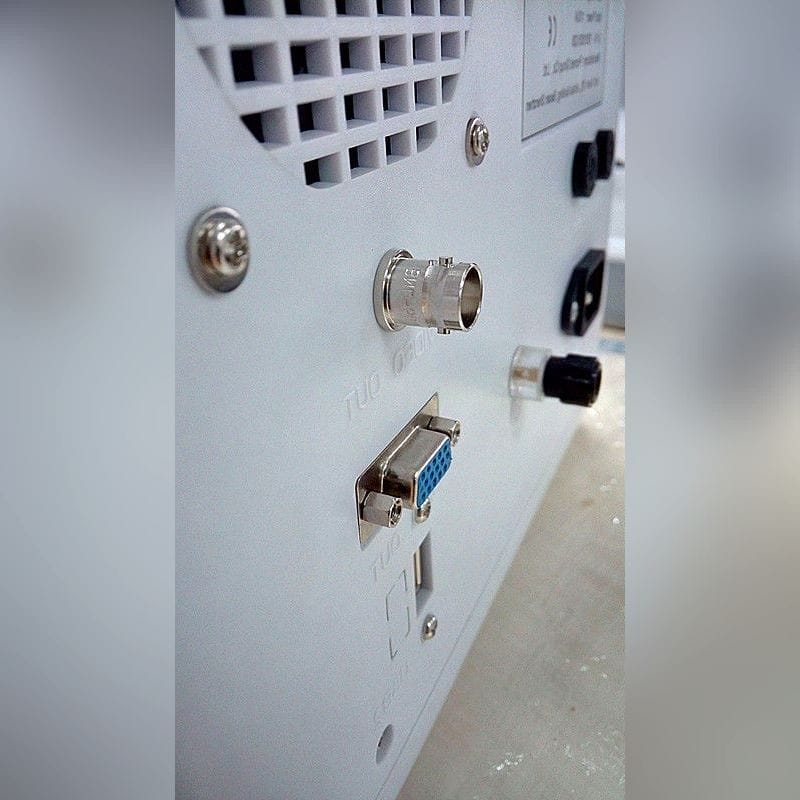

l Output interface: SVGA video output offers connection to SVGA color display;
