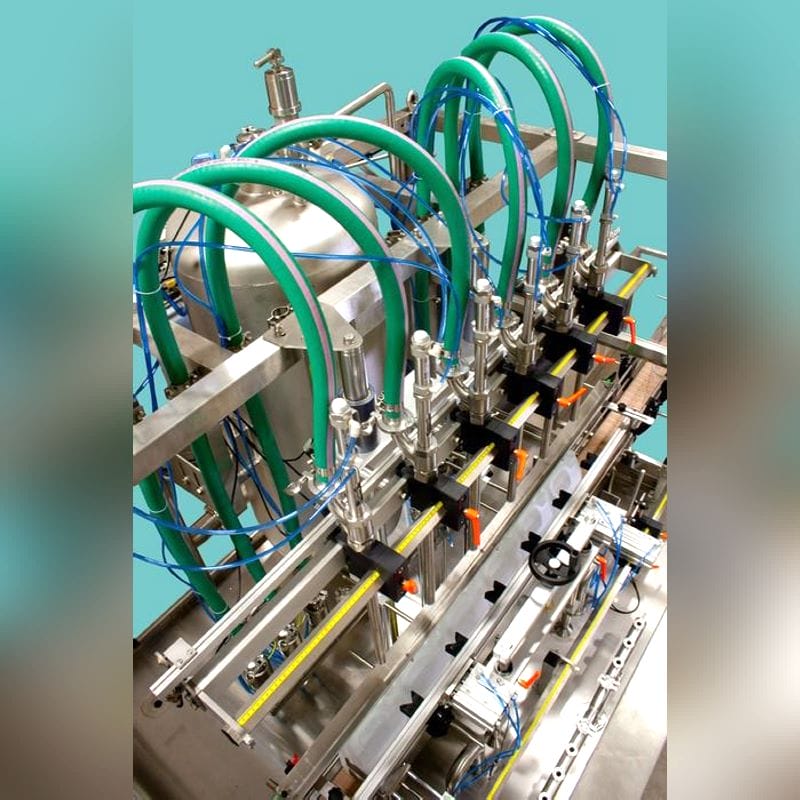

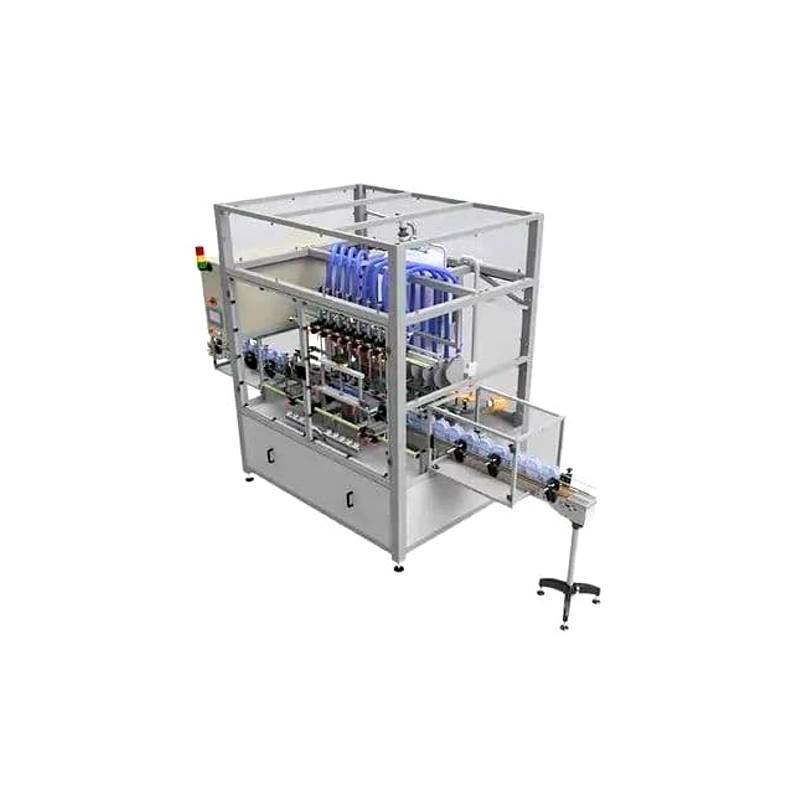

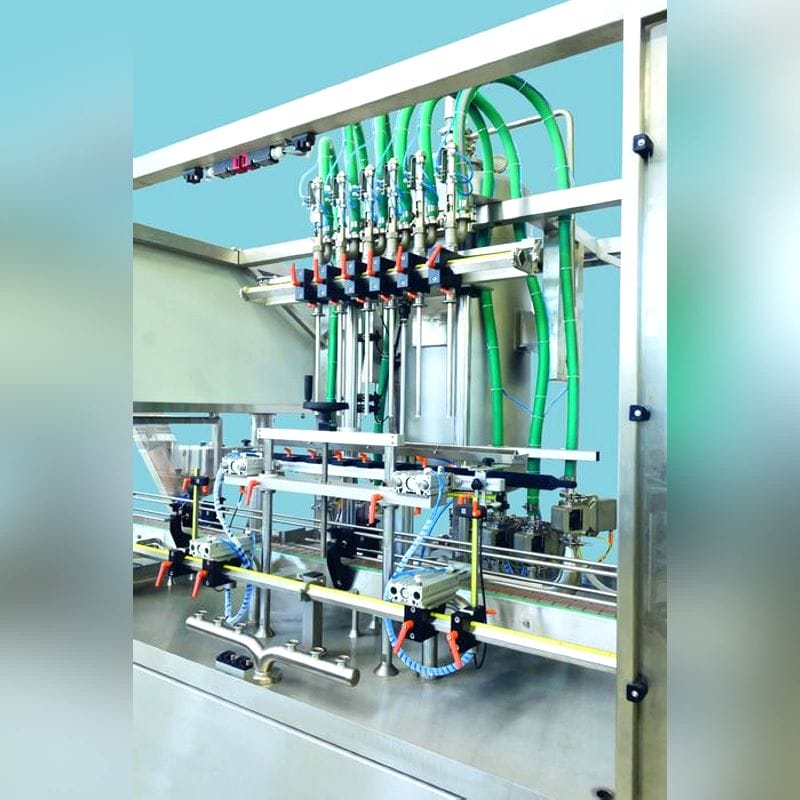

Pneumatic Filling Machine
| Type | Linear, Horizontal |
| Operational Mode | Pneumatic |
| Container Type | Bottle, Tray |
| Product Applications | Conveyor |
| Application Domain | For The Pharmaceutical Industry |
| Configuration | Floor-Standing |
Linear filling machines based on flow meters are used if it is necessary to achieve a high precision of filling and repeatability of the doses, such as in the food, pharma and cosmetic industry or in petro-chemistry. Machines based on flow meters can easily be cleaned using CIP/SIP technologies.
Filling system using flow meters offer a high reliability and require a minimum maintenance.
Mass flow meters eliminate the influence of temperature and can achieve identical doses at various filling temperatures.
The capacity of single-line machines reaches from 1,000-5,000 bottles per hour; double-line machines have a capacity of up to 8,000 bottles per hour.
Machine frame with height adjustable feets
Motorized conveyor with adjustable speed
Infeed and outfeed gates
Sensor to detect bottles entering to filling area
Flowmeters for product dosing

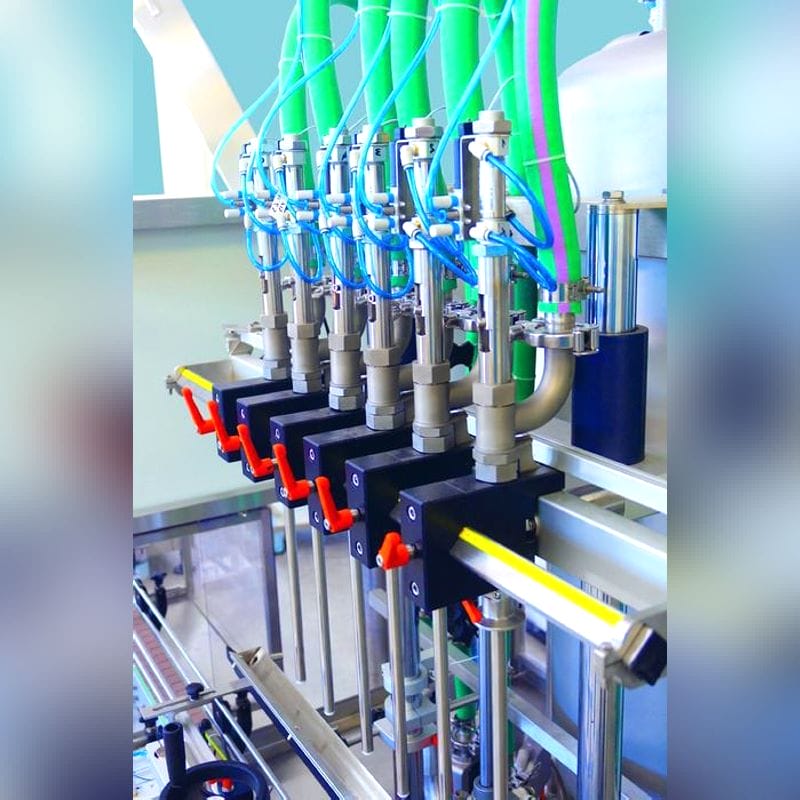

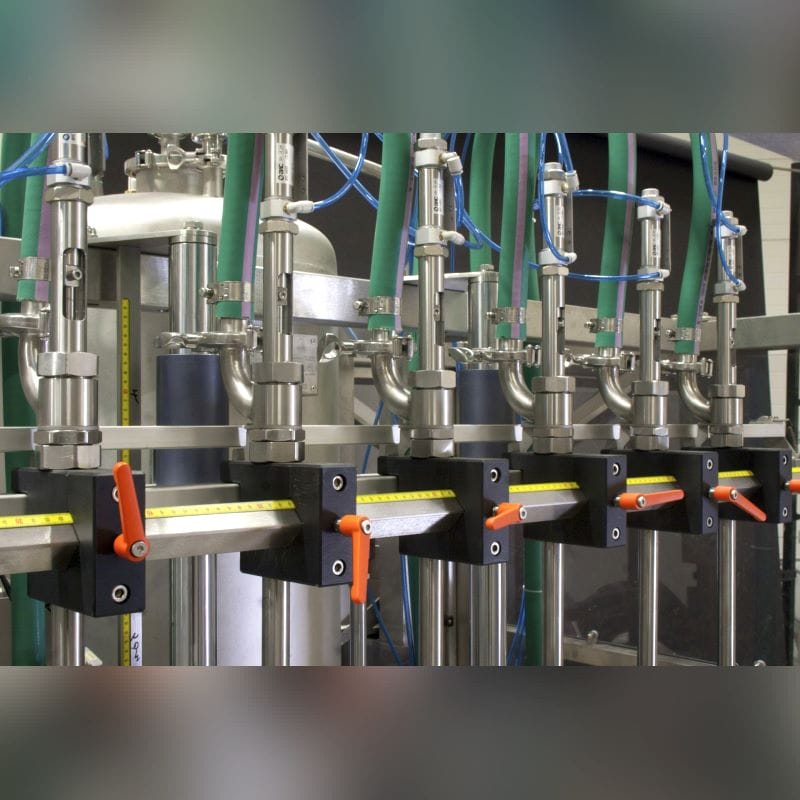

Pneumatic lift of filling nozzles (bottom up filling)
Closing of filling nozzles
Bottle neck support
Antidrip tray under filling nozzles
Sensor to detect collision of filling nozzles
Sensor to detect outcoming bottles from filling area
Sensor to detect full conveyor behind the machine
Control panel with touch screen
Safety guards

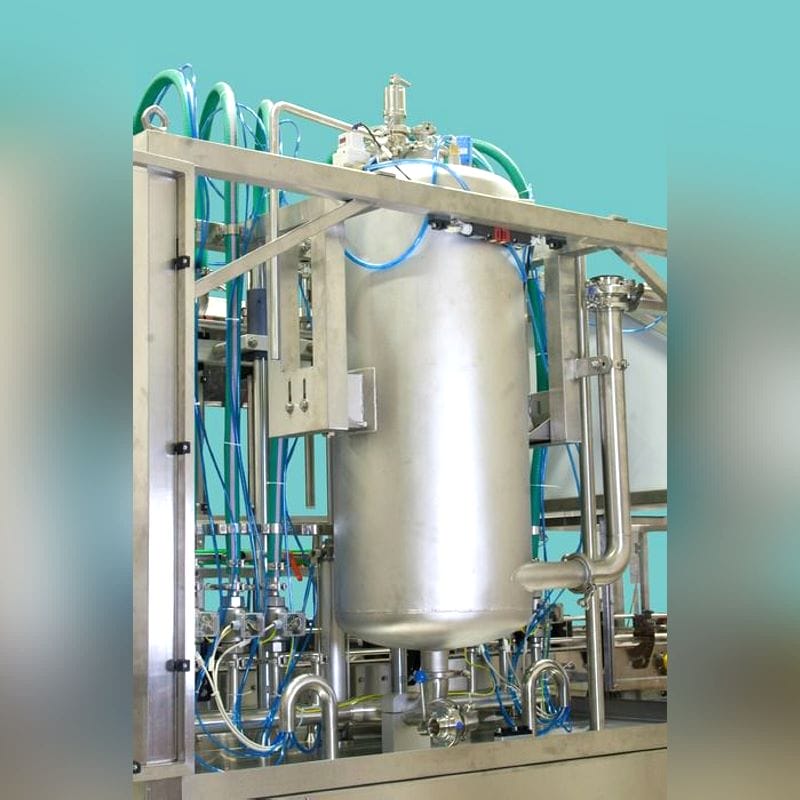

Product tank made of AISI 304 or AISI 316
Pressurized product tank
Product level control
Pneumatic product infeed valve
Pump for product tank refilling
CIP inlet connection
Spray ball inside product tank
Set of adapters for nozzles cleaning
Collection manifold
Product dosing pump
Motorized lift of filling nozzle
Motorized horizontal nozzle movement
ATEX configuration
Chemical proof configuration
Food products configuration
Remote connection
