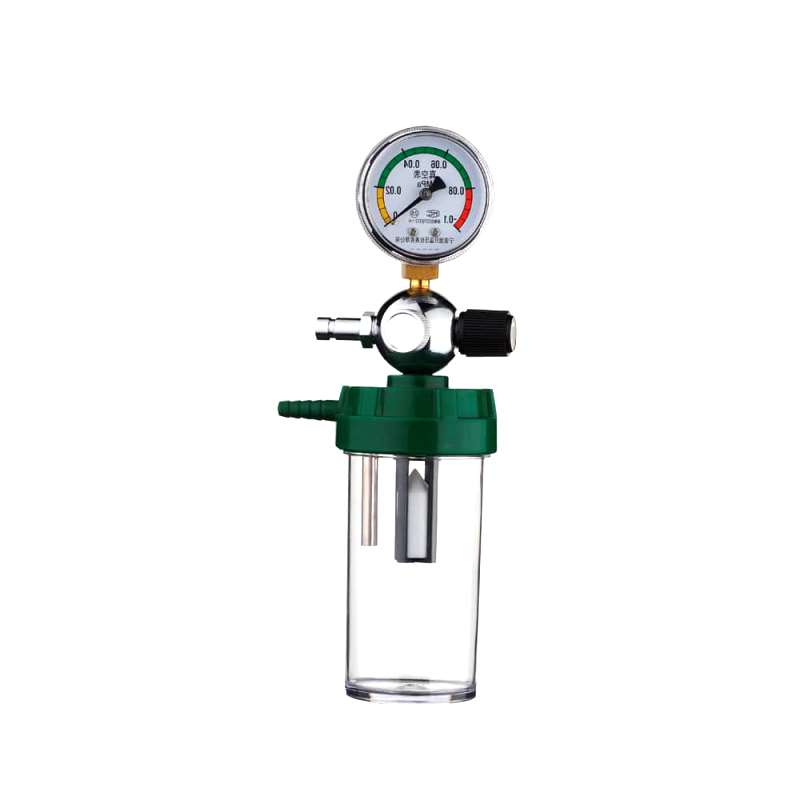

Plug-In Type Vacuum Regulator

Name: Plug-In Type Vacuum Regulator
SKU: ec02e21b2db2
Availability: InStock

Connection Type

Plug-In Type

Add to wishlist

Compare

SKU: ec02e21b2db2 Category: Plug-In Type Vacuum Regulator

Suction system (passive) negative pressure in the atmosphere is not higher than 0.02Mpa (150mmHg), not less than 0.07Mpa (525mmHg), and can be adjusted within the range. In -0.07Mpa, the maximum liquid flow rate should be greater than 5 L/min;

Configuration – single flowmeter — oxygen flowmeter with humidifier

Twin: two flowmeters mounted on a single back bar

Gas inlet types – 1) gas -specific inlet probe conforming to BS 5682

2) 1/8” NPT female-threadde inlet

3) Bullnose nipple with 3/8” BSPNUT.

4) Other country-specific direct and remote-fitting configurations are available- contact the office.

Gas outlet types – 1) body has female thread -use BMI ‘universal’tubing nipple

2) body has a 9/16” UNFmale thread -use tubing nipple(oxygen)

Advantage – Joint is smooth, high-accuracy, many kinds of proble can choose, the type of also can select

Input pressure – 15Mpa

Oxygen flow range – 1-10L/min 1-15L/min

Pressure reducing range – 2.0-3.0mpa

Relief valve pressure range – 3.5±0.5mpa

Output connection screw thread – 8mm

Input connection screw thread – G5/8-14-RH, CGA540-RH, G3/4-14-RH

Output pressure – 0.2-0.3Mpa

Flow rate – 1-10L/min, 1-15L/min;

Humidifier capacity – 170ml

Valve materrial – brass

material of PC bottle – pvb

Structure – piston type

Delivery Detail – 15 days — oxygen flow meter with humidifier

Dimension – 20PCS/CTN (color box) or other

G.W./N.W – 20/19kg

Packing – Each sent with plastic bag then in inner box 20 sets/ctn

Maintenance checks – three-monthly leak check

annual inspection

Environmental conditions – store/operate between 5 and 25 degree

protect exposed o-rings from light

Quality guarantee period – 2 years — oxygen flow meter with humidifier
