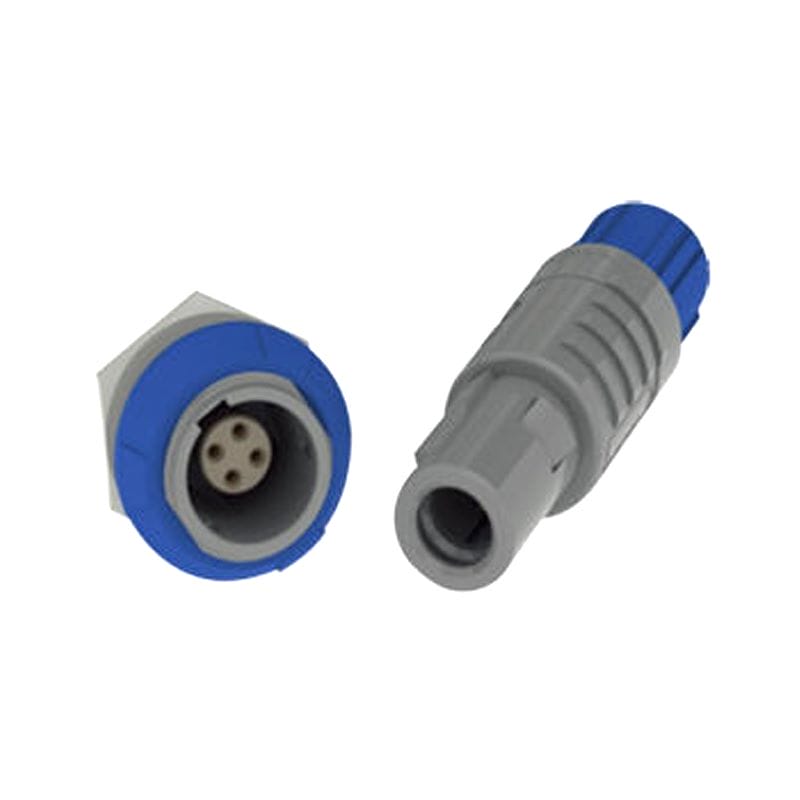

Medical Device Connector
| Type | Male |
| Applications | For Medical Devices, For The Medical Industry |
| Other Characteristics | Push-Pull, Compact, Plastic, Waterproof |
1P Series
Overview/Description
JPC offers diversified plastic and medical connectors ideal for medical equipment. Features including quick mating/unmating, keying, color-coding, chemical resist, vibration resist, enduring high-temperature, and pressure. From patient monitoring devices to disposable surgical ablation catheters, our connectors offer medical grade push-pull self latching connector in plastic, metal, and even waterproof IP68 connector features. Furthermore, our customization service can offer you proper features to meet your medical connector needs.
Benefits / Features
1. Push-Pull self-latching
2. Quick and easy mating and de-mating
3. FDA approved biocompatible materials (PSU or PEI)
4. Electrical Safety (touch & scoop proof)
5. Multiple Key options (6 keyways)
6. Wide selection of colors for easy recognition (7 colors: Black, White, Red, Yellow, Green, Blue, Grey)
7. IP50
8. Watertight and disposable connectors available
Specification
1. Connector type: Straight plug, Free socket, Fixed socket
2. 2 to 14 pin
3. Solder & print contacts
4. PSU working temp.- 50°C~150°C ; PEI working temp. -50°C~170°C
5. Gray or black outershell
6. For cable ø 2.7 to 6.5 mm
7. Current rating: 2 to 10A
8. Dielectric withstanding voltage 0.6 to 1.2kV rms
9. Insulation resistance: 10¹²Ω
10. Durability: >2,000 cycles
11. Average retention force: 50N; Cable retention force: 50~150N
Product Environmental Compliance
RoHS Compliant
Applcation/ Target Market
Push-Pull circular connectors product application are often preferred in Motors, Power, Electronics, Mechanical, Medical Equipment, MRT, Automobiles, Electric Vehicles, Communication Equipment, Military Applications, etc.
