Industrial Syringe Pump
| Applications | Industrial |
| Other Characteristics | Programmable |
| Number Of Channels | Multi-Channel |

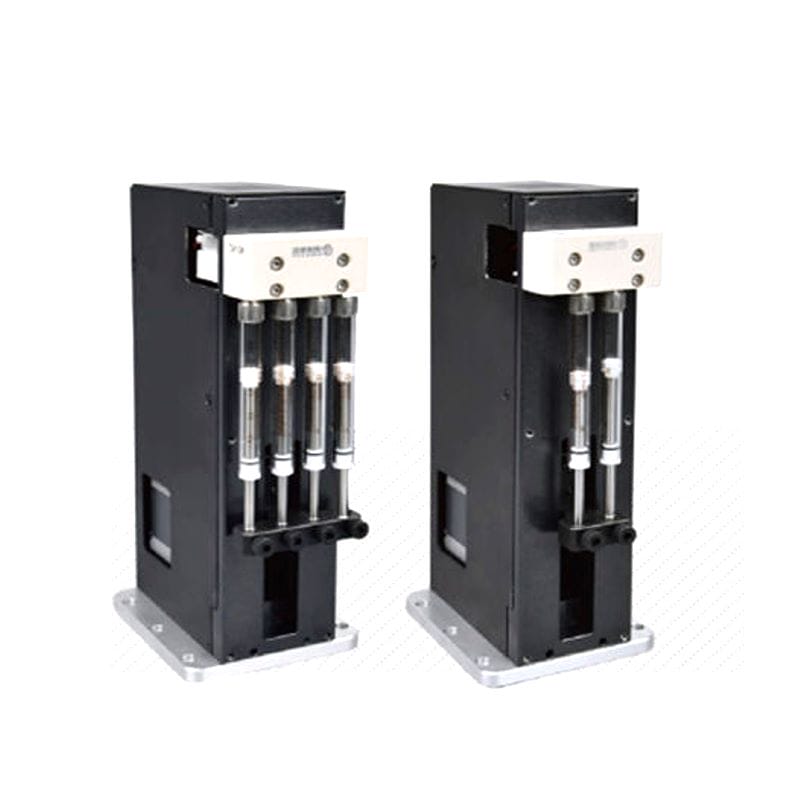

SY-03B Dk series product is a kind of micro-syringe pump with multiple syringes working in parallel in high precision developed by Runze Fluid. Use a stepper motor to drive the syringe and the valve to aspirate and dispense quantitative liquid. The syringe is replaceable. It is a fully programmable pump module with the open framework, which handling fluids from microliters to milliliters with extraordinary accuracy and precision. It can be controlled by an external computer or microprocessor, and with functions in automatic pipetting, dilution and dispensing.
Syringe sizes ranging from 25μL to 5ml
RS232/RS485 interface
Plunger speeds from 0.1rpm to 500rpm
Programmable acceleration-deceleration curve
Programmable backlash compensation
Lost-step detection
Off-line automatic operation
Error diagnosis
Accuracy – ≤1%@100% stroke
Precision (Repeatability) – 0.3%~0.5%@100% stroke
Rated stroke (control steps) – 60mm(6000 steps standard mode; 48000 steps micro-step mode)
RPM Range – 0.1rpm ~ 900rpm
Linear speed – 0.01mm/s ~ 100mm/s(media: water ; 1 rated stroke=one time)
Running time (per rated stroke) – 1.8s ~ 6000s(media: water ; 1 rated stroke=one time)
Resolution – 0.01mm (per step)
Valve Type – Solenoid valve
ILS Syringe – 25μl, 50μl, 100μl, 250μl, 500μl, 1ml, 1.25ml, 2.5ml, 5ml
Wetted material – Borosilicate glass, PTFE, FKM, PEEK(PPS)
Max. Pressure Rating – 0.2Mpa
Actuator – Trapezoidal screw (Lead 6mm)
Connection – 1/4-28UNF
Baud rate – RS232/RS485: 9600bps, 38400bps
Communication addres – Up to 15 individual addresses can be provided
