Height-Adjustable X-Ray Table

Get Quotation
Options Height-Adjustable, Tilting
Add to wishlist
Compare
SKU: c3b059f62f1c Category: Tag:

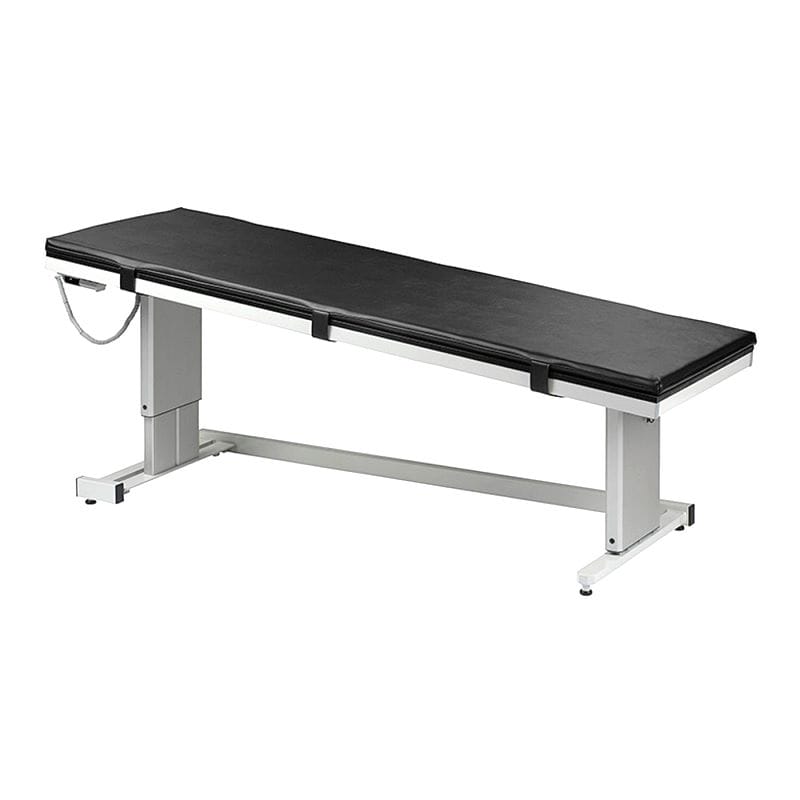

Our X-ray tables are not only available with electric height adjustment (AGA-POWER-LIFT), but also with electric height and tilt adjustment, on the model called AGA-POWER-DUO-LIFT. Here as well, the longitudinal brace in the front of the leg frame was removed to allow the free positioning of a C-arm.

X-ray tables AGA-POWER-DUO-LIFT with electric height and tilt adjustment

The X-ray-permeable PE regenerate support plates have a thickness of 15 mm (for a table width of 650 mm) or 25 mm (for a table width of 800 mm).

For enhanced stability, the leg frame is equipped with levelling screws.

In the standard versions of the AGA-POWER-DUO-LIFT (electric adjustments), there is an area of at least 1300×600 mm (LxW), with no metal parts, between the drives.

Please note that the areas of the headrest and the transition to the main surface, can only be x-rayed to a limited extent due to the hinges and the headrest adjustment mechanisms.

The dual electric anodized light alloy lifting columns are controlled by low-voltage, ultra-quiet electric motors and a hand switch.

Specifications for each motor 230V, 50/60Hz, 6,0A, 240W, IPX6, v=16mm/s, 2x1000N.

The hand module enables simultaneous height and tilt adjustment. With full use of both motorized adjustments, a Trendelenburg and reverse Trendelenburg positioning up to 11° is possible.

Options

One-piece tabletop or

Two-piece tabletop with headrest positively adjustable by grid. As a standard, the headrest is located on the right-hand side (next to the transformer/hand switch). It can be built on the left-hand side if requested at ordering time.
