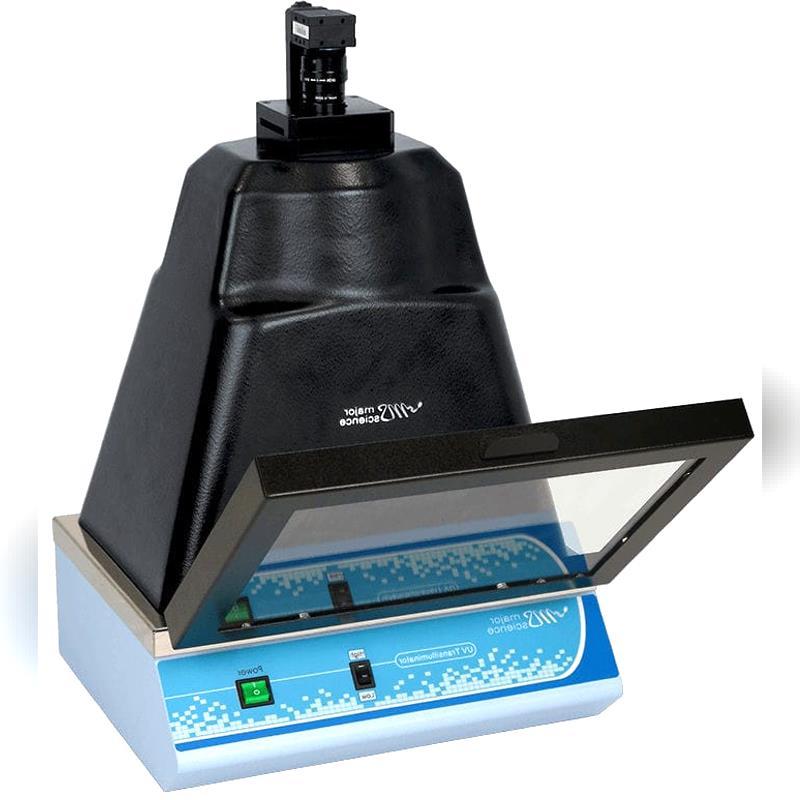

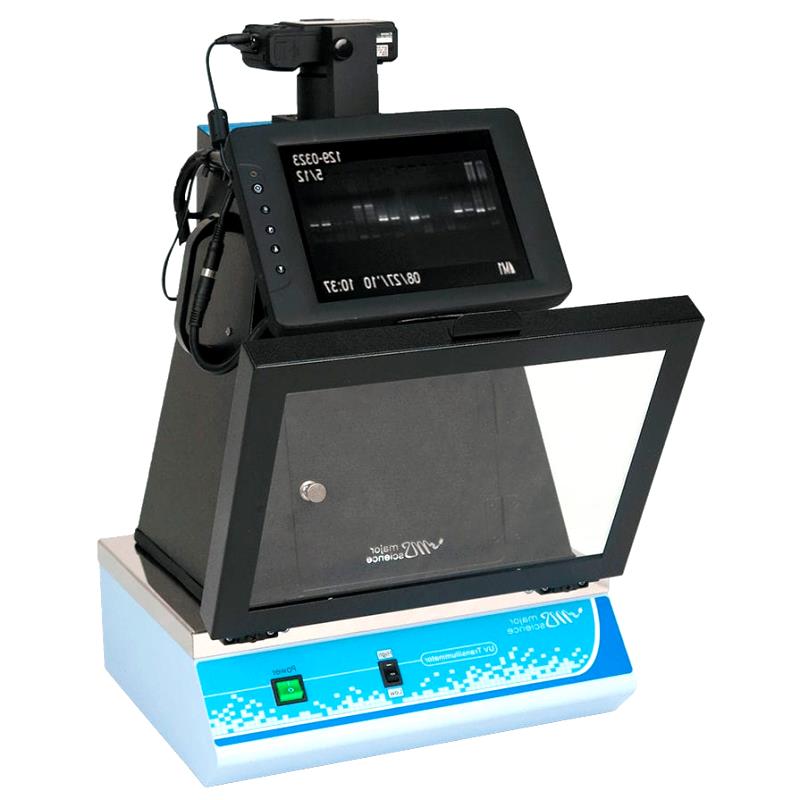

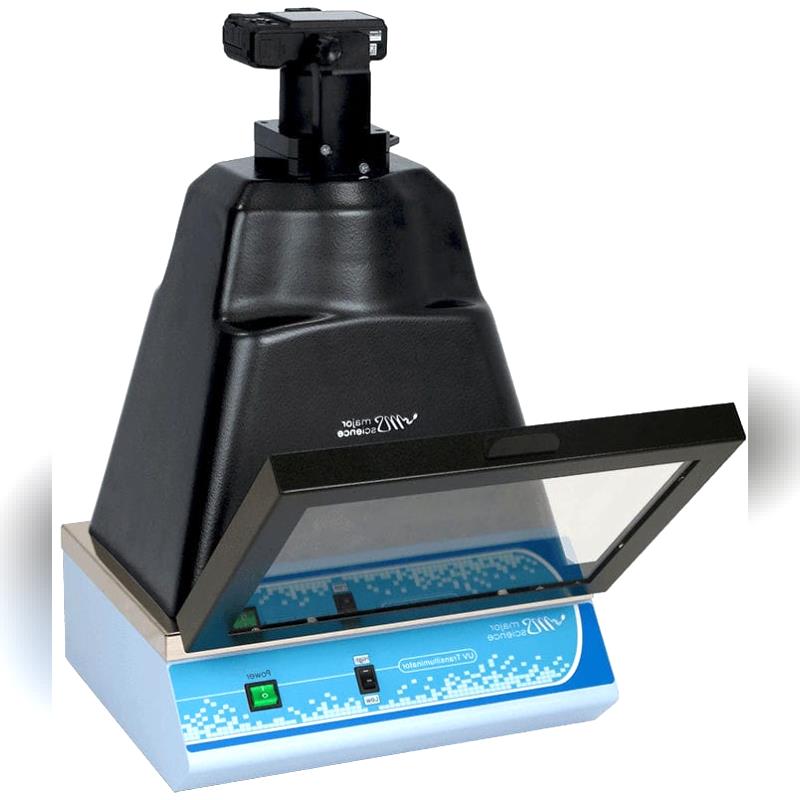

Gel Documentation System Transilluminator
| Applications | For Gel Documentation Systems |
| Light Source | Uv |

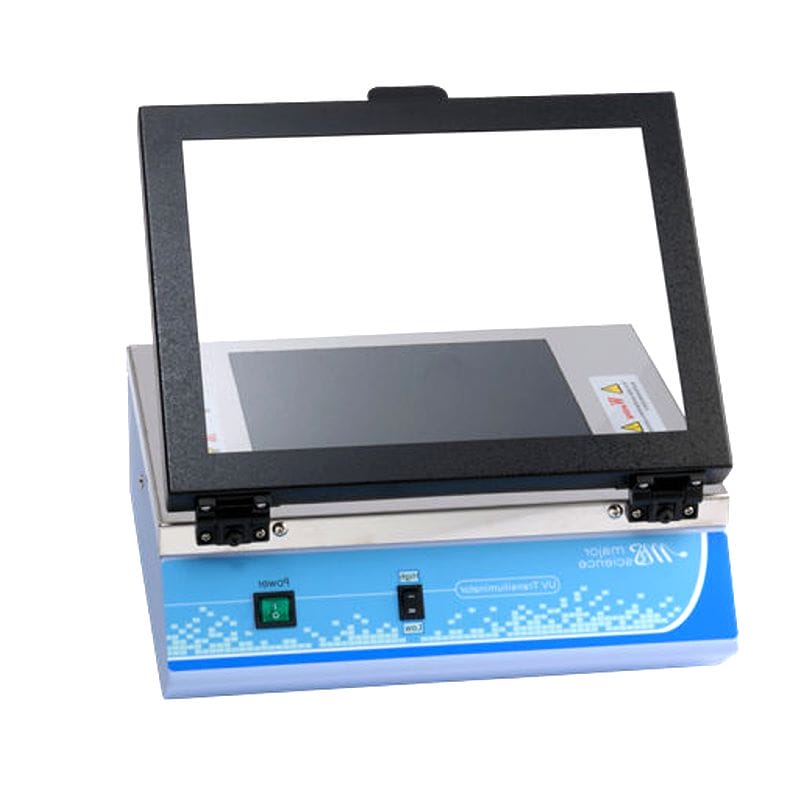

The bench-top UV Transilluminator series offers the researcher uniform and intense sources of ultraviolet light (radiation) with a compact footprint. Their special design emits either one or dual intensity excitation UV wavelengths for back-illumination of transparent fluorescent materials. 254nm, 312 (302)nm, 365nm, 254 & 365nm, and 254 & 312 (302)nm modes are available for different applications. There are two choices of filter size viewing dimensions, 260x210mm and 210x210mm for different user requirements. The 365nm mode is offered for easy view of gels under long wave for extended periods of time avoiding photo nicking damage. The 254nnm mode is used to irradiate samples. The 312 (302)nm mode is suggested for general gel operating. The single wavelength modes have a high intensity / low intensity switch equipped. All bench-top transilluminator modes are compact, lightweight and economical. A high performance model, 312 (302)nm UV Transilluminator with a strong lighting and longer life time tubes, was introduced for demanding requirements.
Features
254nm or 312 (302)nm or 365nm or 254/365nm or 254/312 (302)nm modes available
26x21cm or 21x21cm view dimension
High intensity / low-intensity switch for single wavelength model

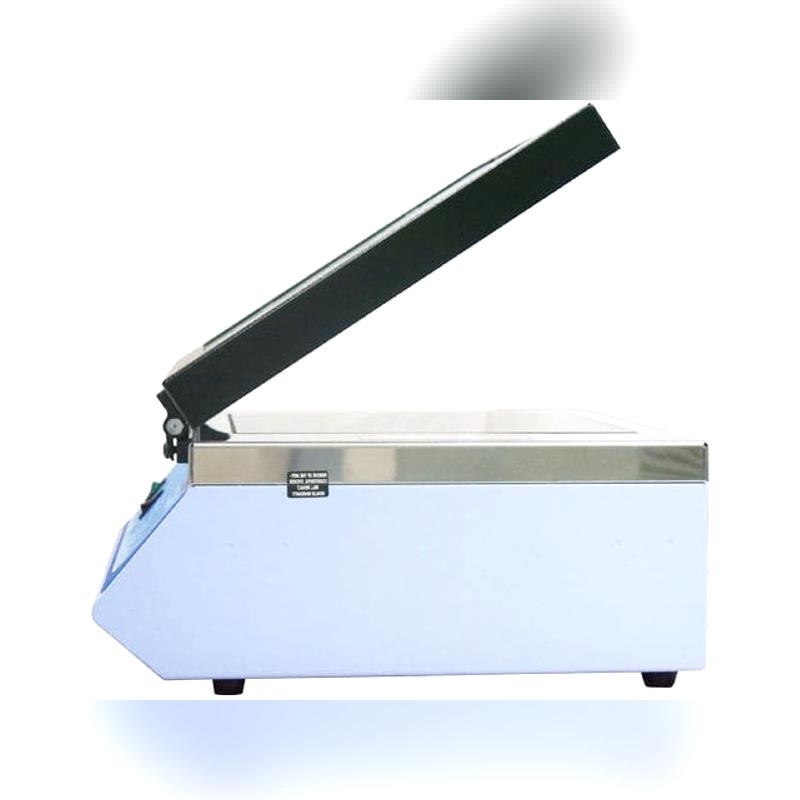

Adjustable UV protection cover for better viewing angle efficiency
High performance models available
Long lifetime Filter
Specification
Wavelength
254 / 312 (302) / 365nm
Filter Size
Approx. 10.2″x8.3″ (260x210mm)
Approx. 8.3″x8.3″ (210x210mm)
Light Source
6 tubes, 8W/tube
Filter
Long life filter
High efficiency reflector
Intensity Switch
High (100%)/Low (70%) intensity switch for single wavelength mode
