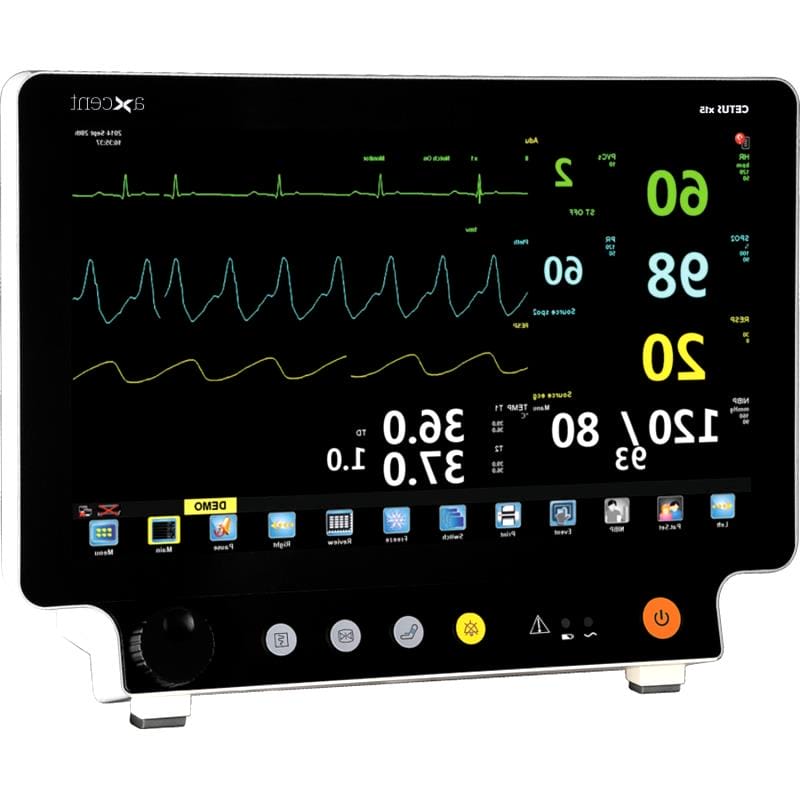

Ecg Patient Monitor
| Measured Parameter | Ecg, Resp, Temp, Etco2, Cardiac Output, Nibp, Ibp, Bis, Spo2, Nmt |
| Configuration | Tabletop |
| Applications | Intensive Care, Hemodynamic |
| Options And Accessories | Wireless, With Touchscreen, Usb |
Multi-Parameter Critical Care Monitor for all Patient Categories
10 waveform display, up to 12-lead ECG analysis
Useful calculation (Hemodynamic, Drug Dose, Oxygenation, Ventilation)
Pacemaker detection
ST & arrhythmia analysis
SpO2 support PVI and PI, low perfusion 0.2%
BISx module, NMT module optional
Wired/Wireless CMS, support HL7 protocol to HIS
SpO2 pulse-tone modulation (Pitch Tone)
VGA support external display
Graphical & tabular trend review (120 hours)
48 hours full disclosure wave review for each patient
Configuration:
ECG, Analog SpO2, NIBP, 2x TEMP, PR, RESP, Li-ion battery
Optional:
Touch-Screen, 12-lead ECG, Digital or Masimo SpO2, 2/4/6 IBP, Cardiac Output, EtCO2 Analyzer, Multi-Gas Analyzer, BIS, NMT, HDMI, Thermal Recorder, Wired/Wireless CMS
Technical Specifications
Resolution: 1366 x 768
Number of traces: 10 waveforms
I/O
LAN: 1 standard RJ45 port
WLAN: IEEE 802.11b/g/n
USB: 2 USB connectors
VGA: 1 VGA monitor connector (option)
Output: 1 connector for Nurse call,
Defib Sync Analog Output (options)
ECG
Lead type: 3-lead, 5-lead,12-lead
ECG waveform: 2 channels, 7 channels,
12 channels
Display sensitivity: 2.5 mm/mV (×0.25),
5 mm/mV (×0.5), 10 mm/mV (×1.0),
20 mm/mV (×2.0)
Wave sweep speed: 6.25 mm/s, 12.5 mm/s,
25 mm/s, 50 mm/s
Bandwidth
Diagnostic mode: 0.05 Hz~100 Hz
Monitor mode: 0.5 Hz~40 Hz
Surgery mode: 1 Hz~20 Hz
Strong filter mode: 5Hz~20 Hz
CMRR>100 dB
Notch: 50/60 Hz notch filter can be set
to on or off
Differential input impedance >5MΩ
Electrode polarization voltage range: ±400mV
Baseline recovery time <3s after defibrillation
